CNC PROFILE CUTTING MACHINE
MACHINES | ITEM CODE:
Item Code: RUM
In line to meet utmost satisfaction by the clients, this CNC Profile Cutting Machine is presented in the market in numerous specifications. Offered cutting machine is safe to use with hard surfaces. These CNC profile cutting machines are made of best material that is shock proof in nature.
Basic Equipments:
- Fully welded beam without bolted joints
- Two linear bearing in cross axis
- AC servomotors digital synchronization in longitudinal axis
- PIERCE “19” control system with touch screen
- Floating cutting heads
- Electric ignition
- Capacitive height control of oxy-fuel torch
- Automatic gas console torch selection from control system
- Automatic initial height sensing of plasma torch
- Arc voltage height sensing of plasma torch parking facility for heads out of cutting area limit switch in each axis
- Air cooling for gas cutting
Optional Equipments:
- Plasma system by customer request
- Pneumatic anti-collision system
- Pneumatic, plasma or inkjet marker
- Control system heating (for winter operation)
Item Code: MAXI
We are committed to present the best and quality approved assortment of CNC Profile Cutting Machines. This cutting machine is widely demanded in commercial sector to meet diverse needs of the clients. Perfect in size, these cutting machines are reliable in working and offer optimal performance.
Basic Equipments:
- NEW fully welded beam without bolted joints
- NEW two linear bearing in cross axis
- NEW AC servo motors cutting speed 0–20 000 mm/min.digital synchronization in longitudinal axis
- NEW PIERCE 19″ control system with touch screen
- Floating cutting heads
- Electric ignition
- Capacitive height control of oxy-fuel torch
- NEW arc voltage height sensing of plasma torch automatic piercing with HI-LOW preheating torch selection from control system
- NEW automatic initial height sensing of plasma torch capacitive height control of oxy-fuel torch
- NEW automatic gas console parking facility for heads out of cutting area limit switch in each axis
Optional Equipments:
- Plasma system by customer request
- Pneumatic anti-collision system
- Pneumatic, plasma or inkjet marker drilling head
- NEW air cooling for gas cutting control system heating (for winter operation)

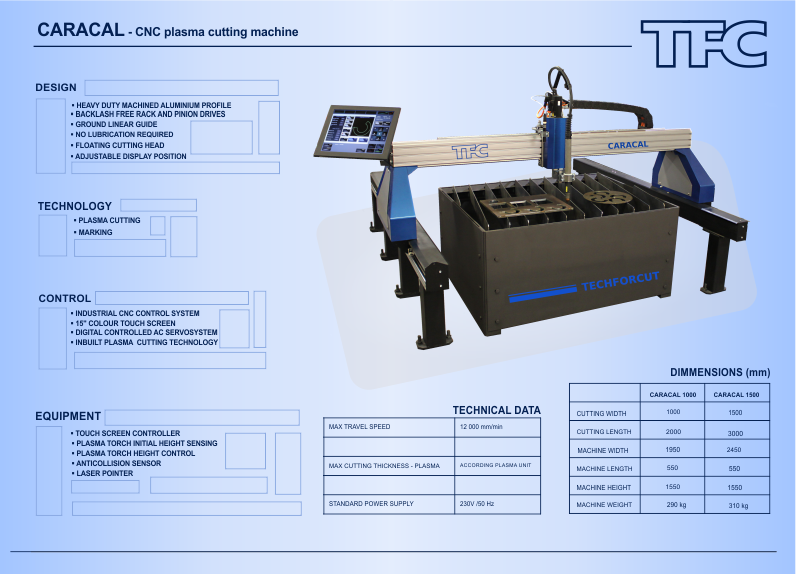

Basic Equipments:
- Linear bearing in cross axis
- Backlash-free rack & pinion positioning
- NEW AC servo-drive system (6 000 mm/min.)
- NEW PIERCE 15“ control system with touch screen
- Floating cutting heads
- Speed control of torch vertical motion
- Electric ignition
- Manual material piercing
Optional Equipments:
- Plasma system by customer request
- NEW PIERCE 19“ control system with touch screen
- HI-LOW preheating
- Automatic capacitive height control of oxy-fuel torch
- 2-step material piercing
- Automatic initial height sensing of plasma torch
- Arc voltage height control of plasma torch
- Pneumatic marker

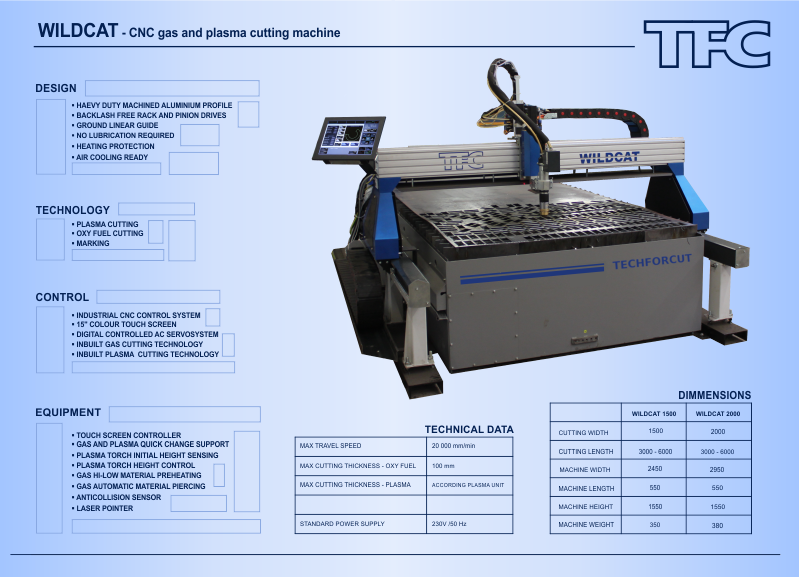

Basic Equipments:
- Fully welded beam without bolted joints
- Linear bearing in cross axis
- NEW AC servo-drive system (12 000 mm/min.)
- Digital synchronization in longitudinal axis
- NEW PIERCE 15“ control system with touch screen
- Floating cutting heads
- Electric ignition
- Capacitive height control of oxy torch
- Automatic piercing with HI-LOW preheating
- Automatic initial height sensing of plasma torch
- Arc voltage height control of plasma torch
- Parking for 1 head out of cutting area
- Limit switch protection in each axis
Optional Equipments:
- NEW PIERCE 19“ control system with touch screen
- Plasma system by customer request
- Linear bearing in longitudinal axis
- NEW AC servo-drive system (20 000 mm/min.)
- Automatic gas console
- Torch selection from control panel
- Anti-collision system
- Pneumatic, plasma or ink jet marker
- Air cooling of portal frame
- Control system heating (for winter operation)
- Parking space for 3 torches

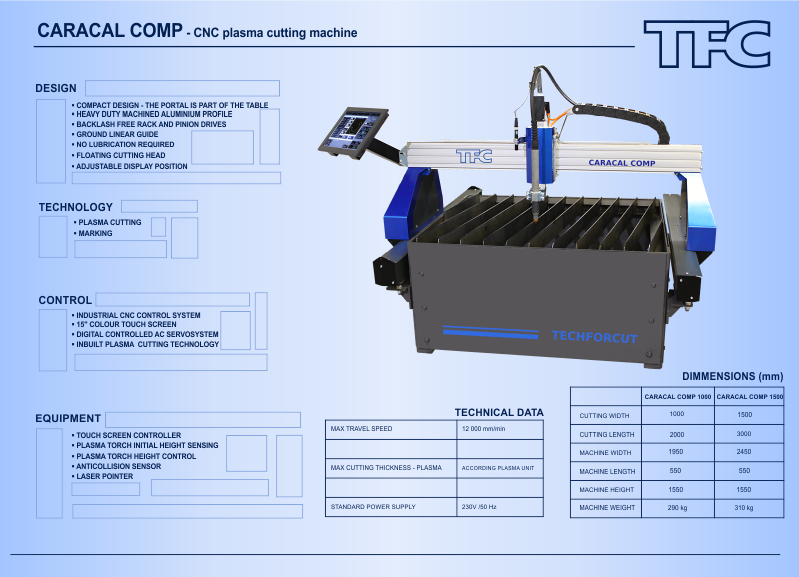

Basic Equipments:
- Fully welded beam without bolted joints
- Linear bearing in cross axis
- Backlash-free rack & pinion positioning
- NEW AC servo-drive system (12 000 mm/min.)
- Digital synchronization in longitudinal axis
- NEW PIERCE 19“ control system with touch screen
- Cutting table with integral fume extraction ducts
- Floating cutting head
- Speed control of torch vertical motion
- Automatic initial height sensing of plasma torch
- Arc voltage height control of plasma torch
- Limit switch protection in each axis
Optional Equipments:
- Plasma system by customer request
- NEW AC servo-drive system (20 000 mm/min.)
- Pneumatic anti-collision system
- Plasma marker
- Pneumatic marker
Descriptions:
Purpose of Equipment
The Rotator is complementary equipment to the CNC cutting machine that allows cutting of any shape in steel pipes or fitting them with shaped ends. The equipment may be used both for the plasma and autogenous cutting technology. Cutting of pipes may use all the functions of the respective technology.
Individual Parts
The equipment features a stationary part with the chuck and jaws for clamping the workpiece pipe, any number of rests and rails that serve to guide the rests to the desired positions.
Operating Principle
The cutting of pipes uses the standard longitudinal movement of the portal on the rails as well as the variation of transverse movement of the cutting head to the rotation of the pipe. Once the function “Pipe cutting” is activated, the control system automatically adjusts the machine to this type of cutting operation.
Programming
The most suitable CAD/CAM system for programming the Rotator is any system that inherently contains preparation of 3D intersections and their subsequent conversion to 2D. Preparation of shapes can also use any 3D CAD system that allows converting the surface to 2D. The final converted shape uses the *.DXF format for loading to the CAD/CAM system supplied with the machine.
